Concentration profile in CADET-Process

a.moser · June 17, 2024, 7:18pm

Hello, I am trying to set up an inlet profile in CADET-Process but running into an error.

As a test case, what I am trying to do is set up the equivalent to the below, which gives the expected outlet plot:

from CADETProcess.processModel import ComponentSystem
from CADETProcess.processModel import Inlet, Outlet
from CADETProcess.processModel import FlowSheet, Process
from CADETProcess.simulator import Cadet

component_system = ComponentSystem(['comp_1'])

feed = Inlet(component_system, name='feed')
feed.flow_rate = 1e-6

outlet = Outlet(component_system, name='outlet')

flow_sheet = FlowSheet(component_system)
flow_sheet.add_unit(feed)
flow_sheet.add_unit(outlet)

flow_sheet.add_connection(feed, outlet)

process = Process(flow_sheet, 'test_process')
process.cycle_time = 10

_ = process.add_event('1', 'flow_sheet.feed.c', [0], 0)
_ = process.add_event('2', 'flow_sheet.feed.c', [0], 1)
_ = process.add_event('3', 'flow_sheet.feed.c', [1], 2)
_ = process.add_event('4', 'flow_sheet.feed.c', [2], 3)
_ = process.add_event('5', 'flow_sheet.feed.c', [3], 4)
_ = process.add_event('6', 'flow_sheet.feed.c', [4], 5)
_ = process.add_event('7', 'flow_sheet.feed.c', [3], 6)
_ = process.add_event('8', 'flow_sheet.feed.c', [2], 7)
_ = process.add_event('9', 'flow_sheet.feed.c', [1], 8)
_ = process.add_event('10', 'flow_sheet.feed.c', [0], 9)

# RUN SIMULATION
simulator = Cadet()
simulation_results = simulator.simulate(process)
_ = simulation_results.solution.outlet.inlet.plot()

If I am understanding correctly, I should be able to set up the same using the add_concentration_profile method as:

import numpy as np
from CADETProcess.processModel import ComponentSystem
from CADETProcess.processModel import Inlet, Outlet
from CADETProcess.processModel import FlowSheet, Process
from CADETProcess.simulator import Cadet

component_system = ComponentSystem(['comp_1'])

feed = Inlet(component_system, name='feed')
feed.flow_rate = 1e-6

outlet = Outlet(component_system, name='outlet')

flow_sheet = FlowSheet(component_system)
flow_sheet.add_unit(feed)
flow_sheet.add_unit(outlet)

flow_sheet.add_connection(feed, outlet)

process = Process(flow_sheet, 'test_process')
process.cycle_time = 10

# setting up inlet profile
time = np.array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9,])
c = np.array([0, 0, 1, 2, 3, 4, 3, 2, 1, 0,])

process.add_concentration_profile(unit='feed', time=time, c=c)

# RUN SIMULATION
simulator = Cadet()
simulation_results = simulator.simulate(process)
_ = simulation_results.solution.outlet.inlet.plot()

But running this I get the error

  File ~/Documents/000_code/CADET-Process_proA_model/CADET_Process_test.py:31
    process.add_concentration_profile(unit='feed', time=time, c=c)

  File ~/miniconda3/envs/CADET-env/lib/python3.12/site-packages/CADETProcess/processModel/process.py:578 in add_concentration_profile
    elif components is None and c.shape[1] != self.n_comp:

IndexError: tuple index out of range

If I try to specify the component as

process.add_concentration_profile(unit='feed', time=time, c=c, components=[0,])

I get a different error:

  File ~/Documents/000_code/CADET-Process_proA_model/CADET_Process_test.py:31
    process.add_concentration_profile(unit='feed', time=time, c=c, components=[0,])

  File ~/miniconda3/envs/CADET-env/lib/python3.12/site-packages/CADETProcess/processModel/process.py:598 in add_concentration_profile
    evt = self.add_event(

  File ~/miniconda3/envs/CADET-env/lib/python3.12/site-packages/CADETProcess/dynamicEvents/event.py:168 in add_event
    evt = Event(name, self, parameter_path, state, time=time, indices=indices)

  File ~/miniconda3/envs/CADET-env/lib/python3.12/site-packages/CADETProcess/dynamicEvents/event.py:889 in __init__
    self.indices = indices

  File ~/miniconda3/envs/CADET-env/lib/python3.12/site-packages/CADETProcess/dynamicEvents/event.py:1031 in indices
    raise e

  File ~/miniconda3/envs/CADET-env/lib/python3.12/site-packages/CADETProcess/dynamicEvents/event.py:1029 in indices
    _ = self.indices

  File ~/miniconda3/envs/CADET-env/lib/python3.12/site-packages/CADETProcess/dynamicEvents/event.py:1003 in indices
    indices = generate_indices(self.parameter_shape, self._indices)

  File ~/miniconda3/envs/CADET-env/lib/python3.12/site-packages/CADETProcess/dynamicEvents/section.py:682 in generate_indices
    indices_array = np.array(indices, ndmin=1)

ValueError: invalid __array_struct__

Not sure if I am setting something up incorrectly or if there is a bug.
Thanks in advance for your help

ronald.jaepel · June 18, 2024, 3:01pm

Hey Angela,

thanks for bringing this to our attention. There is a bug in the implementation, but there’s also a working option

First, this is probably not relevant to your actual question but it tripped me up

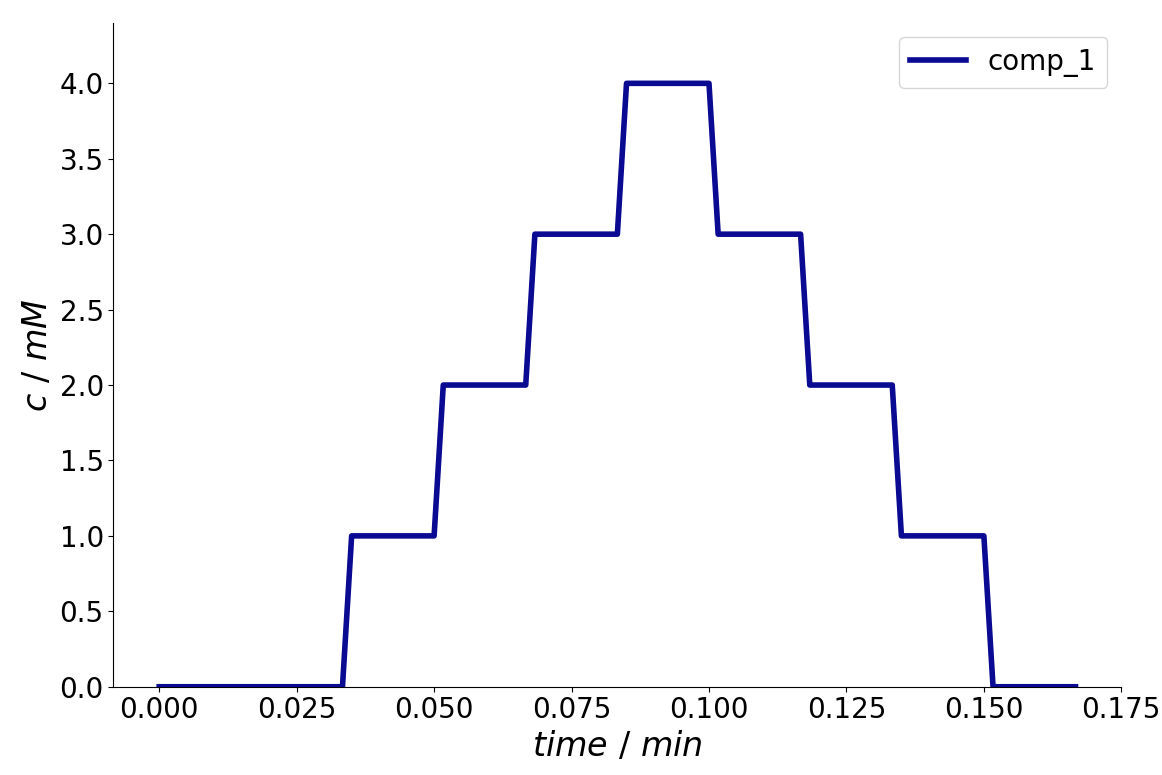

The profile you created in the first step creates a step-wise profile, which isn’t visible in your plot, because the time resolution is too coarse. By lowering the time_resolution to e.g. 0.1 with simulator.time_resolution = 0.1 we get the following graph:

Secondly: the inlet concentration expects an array of shape [time_steps, components] and you passed an array of shape [time_steps], which (to Python) are two very different things. You can turn your array into the expected shape with
c = np.array([0, 0, 1, 2, 3, 4, 3, 2, 1, 0, ]).reshape(-1, 1)
Then, CADET-Process should correctly set it up, but it doesn’t due to a bug. We can work around the bug by passing the components keyword argument. That however requires the name of the component and not the index of the component. So
process.add_concentration_profile(unit='feed', time=time, c=c, components="comp_1") works just fine.

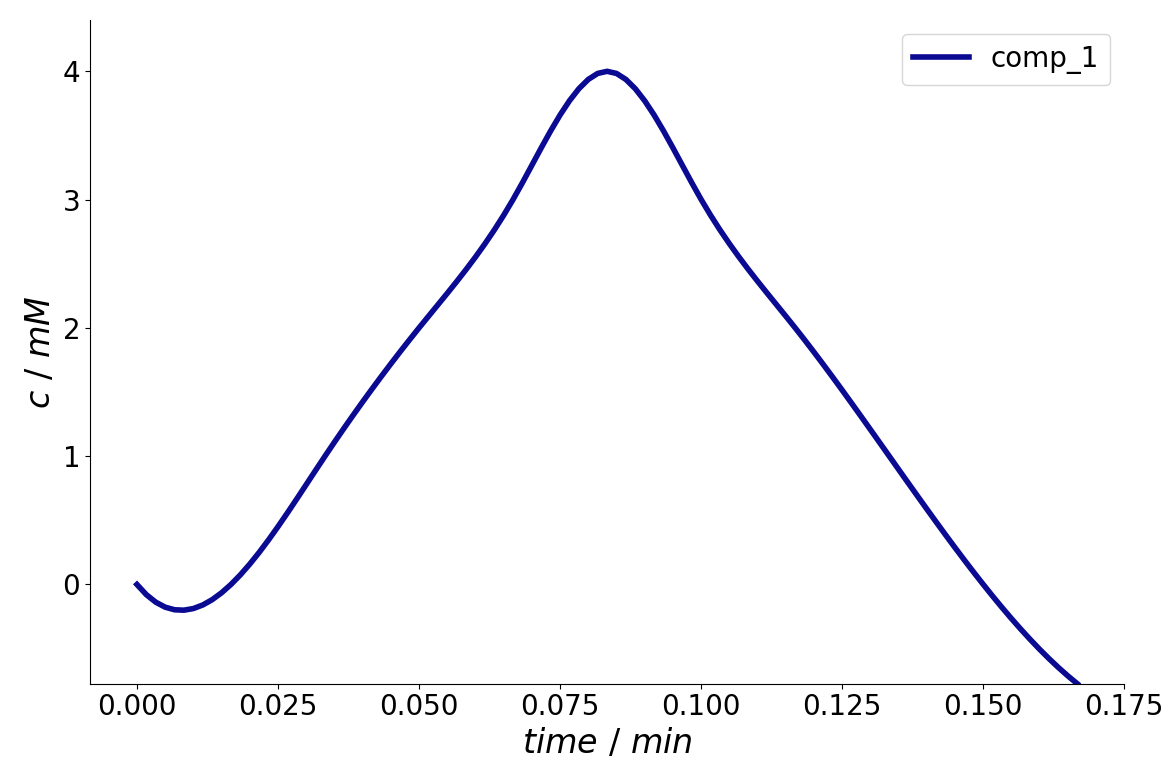

It does (again with a time resolution of 0.1) produce this simulation:

a.moser · June 18, 2024, 4:17pm

A lot going on there haha. To summarize:

smaller time steps for this test case
reshape components array
components takes name not index
an actual bug (but easily avoided)

And now it works for me and I am getting the same plot as you.
Thanks for figuring this out

ronald.jaepel · June 18, 2024, 4:18pm

Great summary! Glad to hear that it works.

j.schmoelder · June 18, 2024, 6:59pm

Hey Angela,

thanks for the bug report and thanks to @ronald.jaepel for the quick help!

I created a fix here that you can install following this guide.

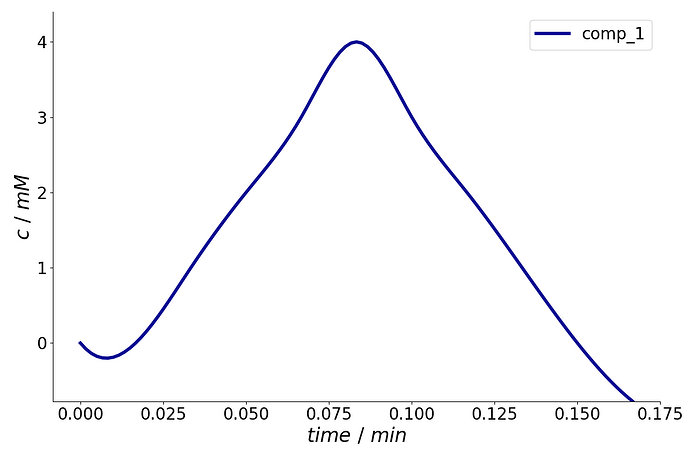

By the way, the reason why the automatic concentration profile does not look exactly (or even closely) like your original profile is due to the fact that under the hood it tries to approximate the original profile using a spline which is not really suited for discontinuous profiles like yours, especially since it has so little data to work with.

If you use more data, e.g.

time = np.linspace(0, 10, 1001)
c = np.zeros((1001))
c[100:501] = np.linspace(0, 4, 401)
c[500:901] = np.linspace(4, 0, 401)

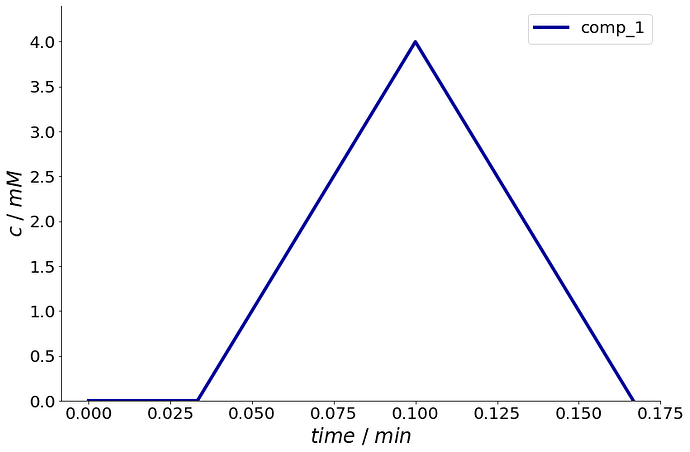

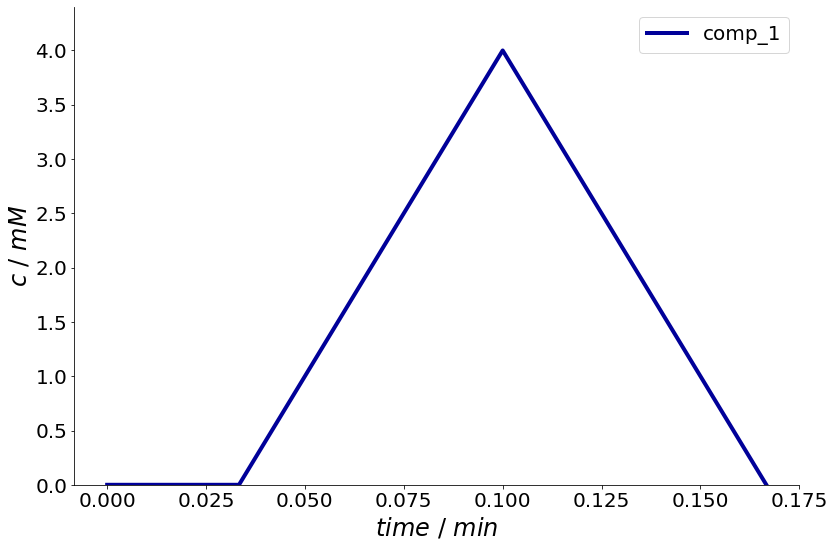

then, it looks much better:

In future, we might add some more functionality, but for now, this is what we’ve got.
